Tie Rod Hydraulic Cylinder Manufacturer
GY Hydraulic provides standard and custom tie-rod hydraulic cylinders to equipment manufacturers, hydraulic system integrators, and industrial project clients. We can customize the cylinder bore, piston rod diameter, stroke, mounting configuration, porting, cushioning mechanism, and sealing system based on your operating pressure, load, installation space, and operating environment.
- Supports standard models and OEM customization
- A wide range of stroke lengths, mounting options, and interfaces available
- Professional manufacturing and hydraulic testing capabilities
- Provides product selection, design, and after-sales technical support
What Is a Tie Rod Hydraulic Cylinder?
A tie rod hydraulic cylinder is a type of hydraulic actuator that uses threaded steel rods to hold the cylinder barrel, end caps, and internal components together. It is widely used in industrial machinery because of its reliable structure, easy maintenance, and flexible customization options.
Our Tie Rod Hydraulic Cylinder Range
GY Hydraulic can provide you with differential-type, constant-velocity-type, and various mounting configurations of tie-rod hydraulic cylinders based on the equipment’s load, motion characteristics, installation space, and connection design.
Tie Rod Hydraulic Cylinder Specifications
GY Hydraulic specializes in the design and manufacture of hydraulic cylinders, offering a wide range of specifications. Equipped with deep-hole boring machines, honing machines, CNC machining equipment, and hydraulic testing equipment, the company is capable of developing hydraulic cylinders for both standard and specialized applications.
| Specification | Details |
|---|---|
| Cylinder Type | Double Acting Tie Rod Hydraulic Cylinder |
| Cylinder Bore Diameter | Ø25 mm – Ø1000 mm |
| Maximum Stroke Length | Up to 16,000 mm |
| Working Pressure | Up to 70 MPa |
| Cylinder Structure | Tie Rod Construction with Bolted End Cap Design |
| Rod Configuration | Single Rod / Double Rod Available |
| Mounting Options | Clevis Mount, Flange Mount, Trunnion Mount, Foot Mount, Custom Mounting |
| Port Type | BSPP Thread / Metric ISO Thread |
| Cushion Options | Adjustable End Cushion / No Cushion |
| Seal System | Standard Hydraulic Seal Package / Customized Seals |
| Working Medium | Hydraulic Oil and Customized Hydraulic Fluids |
| Customization | Bore Size, Rod Diameter, Stroke Length, Mounting Dimensions, Ports, Seals and Surface Treatment |
Custom Welded Hydraulic Cylinder Process
GY Hydraulic begins with an analysis of your project requirements and provides support throughout the entire process—from hydraulic cylinder design and drawing confirmation to precision machining, assembly testing, and delivery. Each project is tailored to the actual load, installation space, operating pressure, motion requirements, and operating environment, ensuring that the custom hydraulic cylinder is perfectly matched to your equipment.
Submit Requirements
Provide hydraulic cylinder drawings, photos of samples, or key parameters, including cylinder bore, rod diameter, stroke, operating pressure, mounting method, and purchase quantity.
Engineering Design
GY Hydraulic determines the hydraulic cylinder’s structure, materials, seals, cushioning, and mounting configuration based on equipment load, installation space, and operating environment.
Production and Testing
Precision machining, welding, and assembly are completed in accordance with the approved drawings, followed by dimensional inspection, pressure testing, leak testing, and functional testing.
Packaging and Delivery
After passing inspection, the products undergo surface protection and packaging, and are delivered according to order specifications. Installation, usage, and maintenance support are also provided.

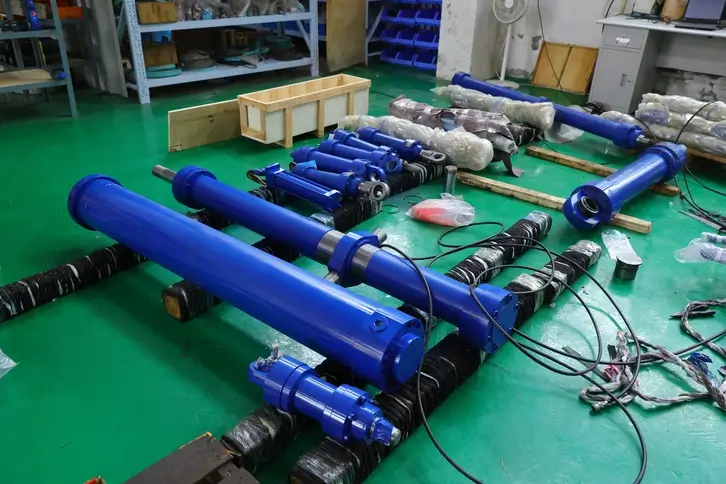

How We Manufacture Tie Rod Hydraulic Cylinders
GY Hydraulic employs standardized production processes, exercising full control over every stage of production—from raw material processing and the manufacture of key components to precision assembly and hydraulic testing—to ensure that every tie-rod hydraulic cylinder delivers stable performance, reliable sealing, and long-term operational capability.
- Hydraulic Cylinder Design Tailored to Your Equipment Requirements
- High-Precision Cylinder Barrel Machining
- Piston Rod Manufacturing
- Piston & Cylinder Head Processing
- Tie Rod Assembly
- Selection of sealing systems based on operating pressure, temperature, and fluid requirements.
- Hydraulic Testing & Quality Inspection
Tie Rod Hydraulic Cylinder Solutions by Application
GY Hydraulic Tie Rod Hydraulic Cylinders are widely used in industrial equipment, heavy machinery, and automation systems. Based on the load, operating environment, and motion requirements of different equipment, we provide reliable hydraulic drive solutions to help customers improve equipment operational stability and production efficiency.

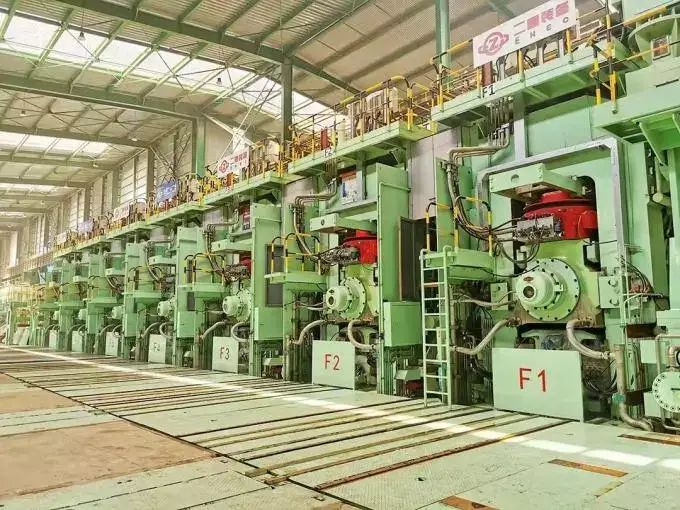

Heavy-Duty Industrial Equipment
Application Requirements: High loads and long periods of continuous operation, with stringent requirements for hydraulic cylinder strength and stability.
Recommended Solution: GY Hydraulic offers high-strength tie-rod hydraulic cylinders with optimized cylinder body structures, sealing systems, and connection methods, making them suitable for push-pull drives in heavy-duty industrial equipment.

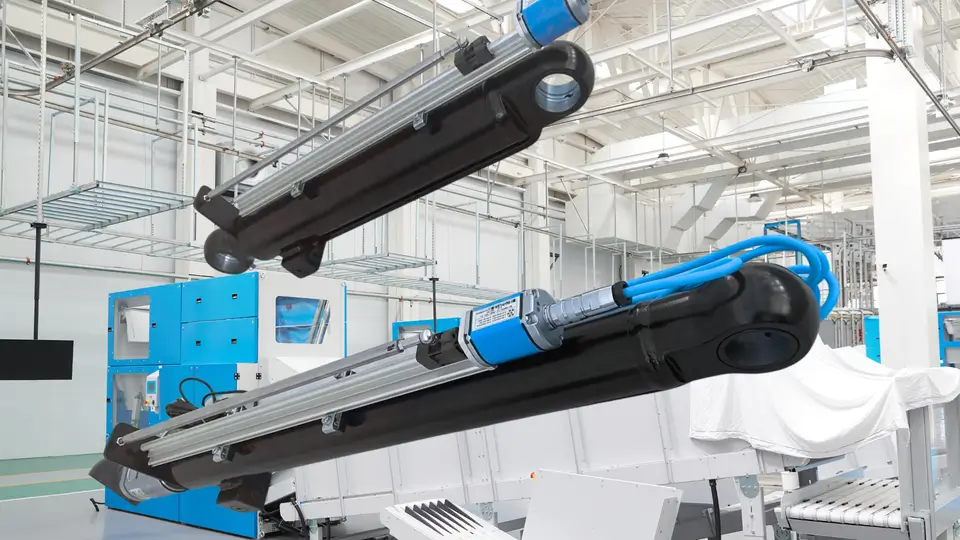

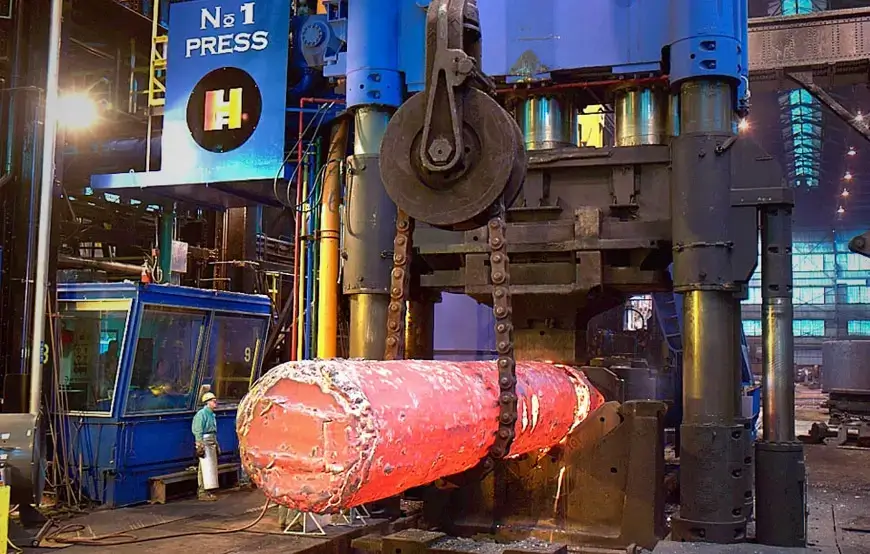

Hydraulic Press Machines
Application Requirements: Requires stable force output and precise control; hydraulic cylinders must withstand high operating pressures.
Recommended Solution: Cylinder bore, piston rod dimensions, and sealing solutions are customized based on equipment pressure and load requirements to ensure long-term, stable operation.
Mining & Material Handling Equipment
Application Requirements: Complex operating conditions, high-impact loads, and high-frequency operation environments.
Recommended Solution: Utilize wear-resistant designs and reliable sealing structures to extend the service life of hydraulic cylinders in harsh environments.
Hydraulic Engineering Equipment
Application Requirements: Long-term outdoor operation requiring reliable protection and stable performance.
Recommended Solution: GY Hydraulic selects appropriate materials, anti-corrosion treatments, and sealing systems based on environmental requirements to meet long-term operational needs.
General Industrial Automation
Application Requirements: Requires precise reciprocating motion, stable control, and high operating frequencies.
Recommended Solution: Provides compact and standardized rod-type hydraulic cylinders to meet the space and performance requirements of automation equipment.
Get An Instant Quote Now
