Custom Press Hydraulic Cylinders Manufacturer
GY Hydraulic provides custom welded hydraulic cylinders for metallurgical equipment, construction machinery, mining machinery, material handling, marine applications, water conservancy projects, and industrial presses. We can customize welded hydraulic cylinders based on your drawings, samples, and actual operating conditions.
Why Choose GY Hydraulic
Leveraging its professional engineering capabilities, GY Hydraulic provides reliable welded hydraulic cylinders for OEM and custom projects. From prototype development to mass production, we help you achieve consistent product performance, reliable supply assurance, and more efficient project delivery.
Our Press Hydraulic Cylinders Range
Different types of press hydraulic cylinders exhibit significant differences in structural design, load-bearing capacity, and application scenarios. Selecting the appropriate cylinder type not only impacts the equipment’s output tonnage, operational stability, and structural layout but also directly affects its long-term reliability and maintenance costs.
Custom Press Hydraulic Cylinder Specification Table
Below is an overview of our customization capabilities and scope. Please review it and let me know what you need.
| Custom Specification | GY Hydraulic Customization Options | Project Information Required |
|---|---|---|
| Cylinder Type | Single-acting, double-acting or special-purpose hydraulic cylinders designed for press applications. | Confirm the pressing, return and pressure-holding requirements. |
| Cylinder Bore | Overall manufacturing range from Ø25 to Ø1000 mm . | Determined by required press force, system pressure and safety factor. |
| Piston Rod Diameter | Customized according to compressive load, stroke, mounting method and stability requirements. | Long-stroke applications require buckling and bending checks. |
| Effective Stroke | Customized according to press daylight, die dimensions and working cycle. Overall manufacturing capability supports strokes up to 16 m. | Confirm the retracted length, extended length and maximum permitted stroke. |
| Working Pressure | Designed according to the hydraulic system and required output force. Overall system pressure capability reaches up to 70 MPa. | Provide normal working pressure, maximum pressure and relief-valve setting. |
| Output Force | Pressing and return forces are matched through cylinder bore, effective area and operating pressure. | Provide rated press tonnage, maximum load and peak pressure. |
| Mounting Method | Flange, clevis, spherical bearing, trunnion, foot mounting or customized mounting based on drawings. | Confirm mounting holes, center distance, load direction and available installation space. |
| Retracted and Extended Dimensions | Customized to match the press frame, slide position, tooling and available machine space. | Check for insufficient travel, excessive length and structural interference. |
| Cylinder Head and Cap | Designed according to pressure, maintenance and assembly requirements. | Final connection and fastening structures must follow the approved drawing. |
| Piston Rod Configuration | Customized rod diameter, rod-end connection and surface treatment for specific operating conditions. | Consider side load, wear, impact, frequency and working environment. |
| Sealing System | Seal configuration selected according to pressure, hydraulic medium, temperature and pressure-holding requirements. | Confirm fluid type, working temperature and leakage requirements. |
| Guiding System | Guide structure designed according to side load, stroke and piston rod dimensions. | Helps reduce uneven wear, stick-slip motion and premature seal failure. |
| Cushioning | Optional single-end or double-end cushioning for high-speed or high-impact applications. | Confirm operating speed, moving mass and end-of-stroke impact. |
| Hydraulic Ports | Customized port thread, size, position and orientation to match the hydraulic circuit. | Provide valve-block position, required flow rate and hose-routing direction. |
| Hydraulic Medium | Cylinder configuration matched to the customer's hydraulic system and seal compatibility requirements. | Confirm hydraulic fluid type, cleanliness level and operating temperature. |
| Surface Protection | Customized cylinder coating, piston rod protection and exterior color. | Specify indoor, humid, dusty, corrosive or other operating conditions. |
| Quality and Performance Testing | Pressure, leakage, movement, stroke, dimensional and sealing inspections based on project requirements. | Confirm test pressure, holding time, leakage limits and acceptance standards. |
| OEM Documentation | Development based on 2D drawings, 3D models, physical samples or technical agreements. | Final drawings and acceptance criteria must be approved before batch production. |
Custom Welded Hydraulic Cylinder Process
GY Hydraulic begins with an analysis of your project requirements and provides support throughout the entire process—from hydraulic cylinder design and drawing confirmation to precision machining, assembly testing, and delivery. Each project is tailored to the actual load, installation space, operating pressure, motion requirements, and operating environment, ensuring that the custom hydraulic cylinder is perfectly matched to your equipment.
Submit Requirements
Provide hydraulic cylinder drawings, photos of samples, or key parameters, including cylinder bore, rod diameter, stroke, operating pressure, mounting method, and purchase quantity.
Engineering Design
GY Hydraulic determines the hydraulic cylinder’s structure, materials, seals, cushioning, and mounting configuration based on equipment load, installation space, and operating environment.
Production and Testing
Precision machining, welding, and assembly are completed in accordance with the approved drawings, followed by dimensional inspection, pressure testing, leak testing, and functional testing.
Packaging and Delivery
After passing inspection, the products undergo surface protection and packaging, and are delivered according to order specifications. Installation, usage, and maintenance support are also provided.
Custom Press Hydraulic Cylinder Solutions
Different equipment varies significantly in tonnage, structural layout, and installation methods. If the cylinder dimensions or structural design are incompatible, it may lead to installation difficulties, insufficient output force, or unstable operation. Therefore, hydraulic cylinder manufacturers with proven OEM customization capabilities are particularly crucial for equipment manufacturers.
- Flexible Bore & Stroke Design
- Multiple Mounting Options
- Sealing System Optimization
- Engineering Support for OEM Projects
Through engineering services such as custom sizing, installation structure design, and sealing system optimization, OEM-customized hydraulic cylinders can better match various types of hydraulic press equipment. This helps equipment manufacturers enhance overall machine performance while reducing long-term maintenance costs.
Press Hydraulic Cylinder Industry Solutions
Different industrial sectors have varying requirements for hydraulic cylinder pressure ratings, structural strength, stroke length, and durability. When selecting hydraulic press cylinders, prioritize products that have been proven in relevant industries and possess a track record of stable and reliable engineering applications.
Metal Stamping Press

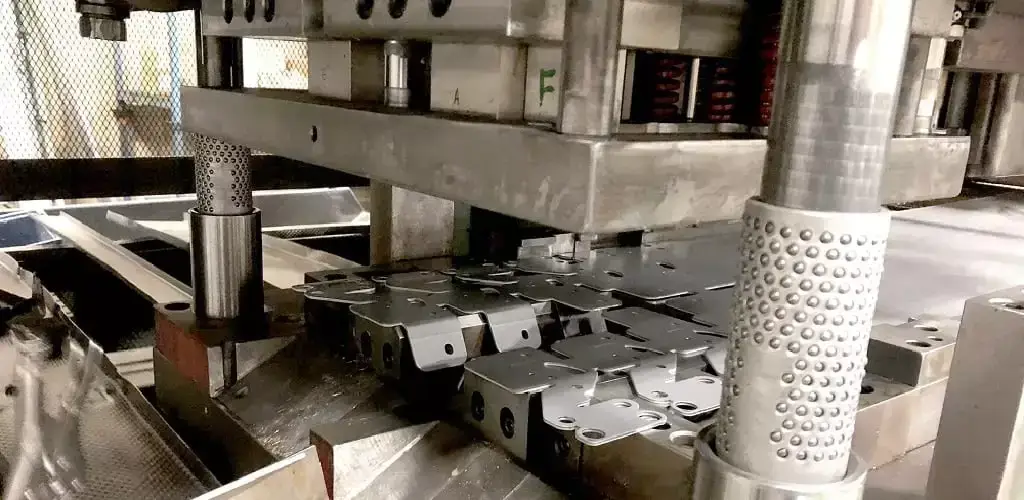

In the metal stamping industry, hydraulic presses must generate processing pressures ranging from 200 to 1500 tons for sheet metal stamping, drawing, and forming operations. Stamping production lines operate at frequencies of 10 to 30 press cycles per minute, demanding exceptionally high standards for the sealing performance and structural stability of hydraulic press cylinders.
GY Hydraulics’ Press Hydraulic Cylinders typically utilize high-strength cylinder barrel materials and wear-resistant sealing systems to ensure stable operation during prolonged continuous production.
Forging Press
The forging industry represents one of the most demanding applications for hydraulic press cylinders. Large forging hydraulic presses can operate at pressures ranging from 3,000 to 10,000 tons or higher. Under such conditions, hydraulic cylinders must possess exceptional structural strength and fatigue resistance. Consequently, forging equipment typically employs large-bore heavy-duty cylinders (diameter 300–800 mm), featuring reinforced cylinder body structures and high-strength piston rod designs.
Metal Forming Equipment
In sheet metal forming and deep drawing equipment, hydraulic press cylinders must deliver stable and controllable pressure output. Typical forming equipment operates at pressures ranging from 200 to 2000 tons, while requiring smooth cylinder operation to ensure product machining precision and consistency. Consequently, such applications impose stringent demands on cylinder machining accuracy, guiding structures, and seal stability.
Get An Instant Quote Now
Visit Press Hydraulic Cylinder Manufacturer
When selecting a Press Hydraulic Cylinder supplier, a factory’s manufacturing capabilities often carry greater weight than mere product specifications. As hydraulic press cylinders are heavy-duty, non-standard equipment components, their quality stability depends not only on the design solution but also on production equipment, machining precision, and the quality control system.
- Precision Machining
- Heavy-Duty Manufacturing
- 100% Pressure Testing
- Customized to Equipment Specifications
1. How is the bore diameter of a press hydraulic cylinder determined?
The bore diameter is primarily determined by the required pressing force and the operating pressure of the hydraulic system. The higher the press tonnage, the larger the effective piston area required.
When selecting a model, a reasonable safety margin should also be factored in, and the selection should be based on a comprehensive evaluation that takes into account equipment space, operating speed, and hydraulic pump flow rate; selection should not be based solely on the rated tonnage.
2. What are the maximum specifications of press hydraulic cylinders that GY Hydraulic can manufacture?
GY Hydraulic’s manufacturing capabilities for complete hydraulic cylinders include:
- Cylinder bore range: φ25–φ1000 mm;
- Maximum stroke: up to 16 m;
- Hydraulic system pressure: up to 70 MPa.
The specific specifications that can be achieved for press hydraulic cylinders must be confirmed based on the structure, pressure, and technical requirements of the project.
3. Why do hydraulic cylinders in presses experience crawling or unstable motion?
Common causes include:
- Air trapped inside the hydraulic cylinder;
- Contaminated hydraulic fluid;
- Misalignment during installation;
- Lateral loads on the piston rod;
- Defective seals or guide components;
- Unstable flow in the hydraulic system.
We require that hydraulic cylinders be filled with fluid and bled before being put into service, and that the working fluid meets the specified cleanliness requirements.
4. What are the requirements for hydraulic fluid cleanliness?
Contamination of hydraulic fluid accelerates wear on seals, guide components, and the piston rod surface.
According to GY Hydraulic documentation, hydraulic systems should use appropriate filters to introduce the correct working fluid, with a minimum cleanliness level of NAS 1638 Grade 8.
5. How can I obtain a quote from Custom Press Hydraulic Cylinders Manufacturer?
Please provide GY Hydraulic with the press tonnage, operating pressure, bore diameter, rod diameter, stroke, mounting method, port specifications, working fluid, and equipment drawings.
Our engineering team will confirm the hydraulic cylinder design and technical parameters based on the actual operating conditions and provide a customized solution and quote.
View More Videos about GY Hydraulic
Gain an in-depth understanding of GY Hydraulic’s production processes, manufacturing equipment, quality control, and customization capabilities. See firsthand how we provide reliable hydraulic solutions for a wide range of industrial projects.
Hydraulic Cylinder Solutions for Global Customers
Whether it’s a standard hydraulic cylinder or a complex OEM project, we can provide professional solutions based on the drawings, equipment requirements, and application environment you provide.
