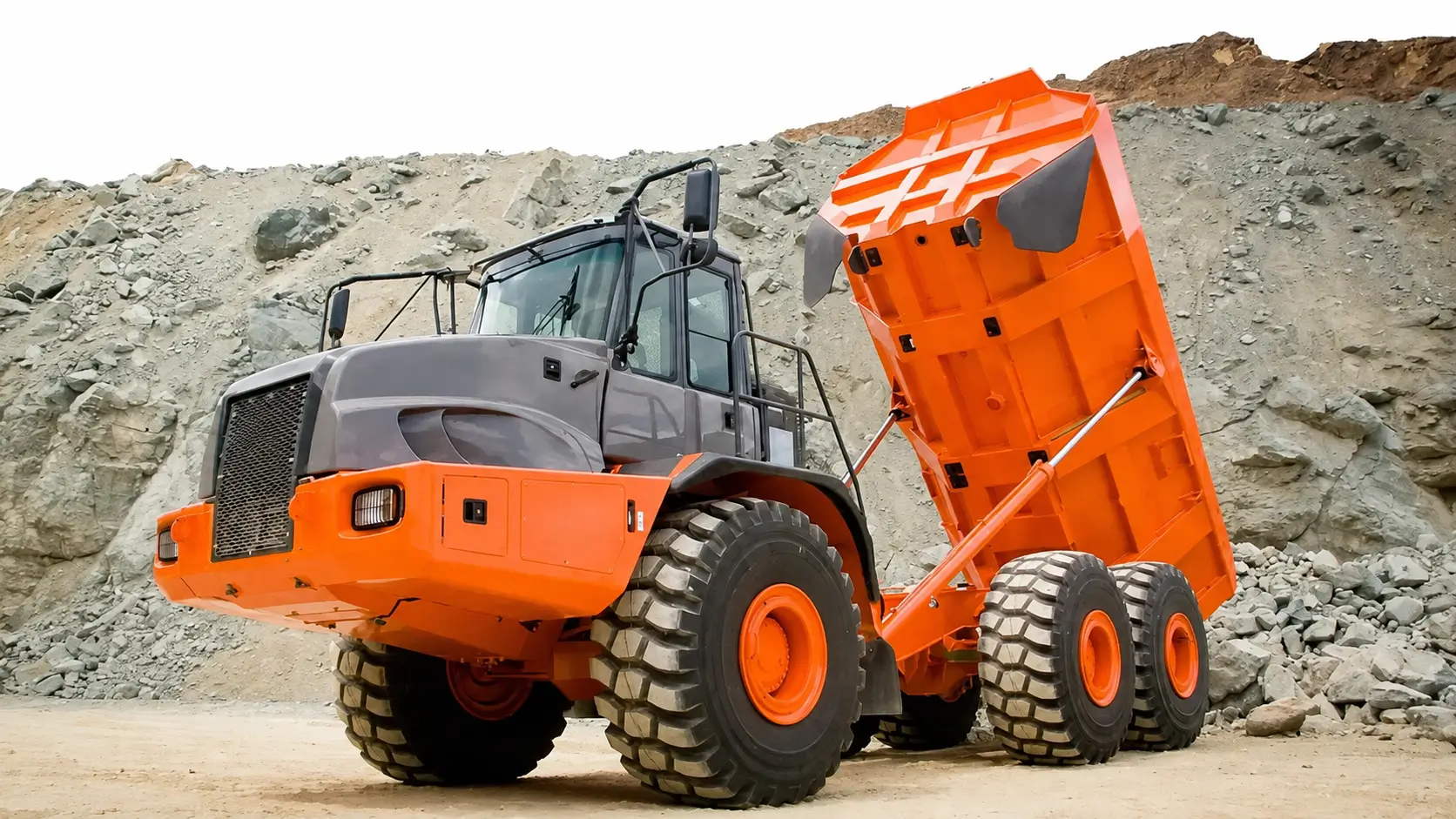

Custom Dump Truck Hydraulic Cylinder Manufacturer
GY Hydraulic can customize hydraulic cylinders for dump trucks and dump trailers based on payload, lifting angle, installation space, operating pressure, and required stroke, supporting structural requirements such as three-stage telescoping.
Why Choose GY Hydraulic
Leveraging its professional engineering capabilities, GY Hydraulic provides reliable welded hydraulic cylinders for OEM and custom projects. From prototype development to mass production, we help you achieve consistent product performance, reliable supply assurance, and more efficient project delivery.
Our Dump Truck Hydraulic Cylinder Range
GY Hydraulic offers dump truck hydraulic cylinders in various configurations and specifications. These products can be used for bed lifting, unloading, tailgate control, and other vehicle hydraulic actuators.
Front-End, Underbody and Scissor Hoist Comparison
All three solutions can lift the cargo bed, but there are significant differences in cylinder design, installation space, initial lifting force, maintenance methods, and compatible vehicle models. When making a selection, you should not simply compare cylinder tonnage or stroke; instead, you need to make a comprehensive assessment that takes into account the cargo bed length, rated load, center of gravity, target lifting angle, chassis space, and hydraulic system parameters.
| Comparison Item | Front-End Hoist | Underbody Hoist | Scissor Hoist |
|---|---|---|---|
| Cylinder Position | Mounted at the front of the dump body, usually behind the cab. | Mounted between the dump body and chassis, normally in the middle or front section. | Mounted beneath the dump body as part of a scissor-linkage mechanism. |
| Typical Cylinder Type | Multi-stage telescopic cylinder with a long effective stroke. | Single-stage or multi-stage hydraulic cylinder. | Single-stage or double-acting hydraulic cylinder. |
| Force Transmission | The cylinder directly lifts the front of the dump body around the rear pivot. | The cylinder directly lifts the underside of the body or works through a simple linkage. | The cylinder moves the scissor linkage, which transfers force to the dump body. |
| Stroke Requirement | Usually requires a long stroke and high extension ratio. | Depends on the mounting position, initial angle and required tipping angle. | The linkage can reduce the cylinder stroke required for the same body movement. |
| Initial Lifting Performance | Depends strongly on cylinder position, mounting angle and load distribution. | Sensitive to the initial installation angle; a small angle may reduce effective lifting force. | The scissor mechanism can provide improved mechanical leverage during initial lifting. |
| Installation Space | Requires sufficient space at the front of the dump body. | Requires clear space between the chassis and body, away from crossmembers and driveline components. | Requires space for the cylinder, scissor arms, pins, bushings and linkage movement. |
| Structural Complexity | Relatively simple, with a direct load path and fewer linkage components. | Moderate, depending on cylinder position and mounting arrangement. | More complex because it includes multiple arms, pivots, pins and bushings. |
| Main Advantages | Large lifting stroke, high tipping angle and suitability for long or heavy dump bodies. | Compact layout that does not occupy the front of the dump body. | Good initial lifting leverage and controlled body movement through the linkage. |
| Main Limitations | Requires good alignment, stable long-stroke operation and balanced loading. | More exposed to mud, water and road debris, with limited maintenance space. | Higher weight, more moving parts and greater maintenance requirements. |
| Maintenance Focus | Telescopic seals, cylinder alignment, stage surfaces and side-load prevention. | Rod protection, hose routing, mounting pins and contamination control. | Scissor arms, pins, bushings, lubrication points and linkage clearances. |
| Typical Applications | Long-body dump trucks, heavy-duty vehicles and applications requiring a high tipping angle. | Small and medium dump trucks, dump trailers and compact vehicle layouts. | Vehicles requiring strong initial lifting performance and a guided tipping path. |
Custom Welded Hydraulic Cylinder Process
GY Hydraulic begins with an analysis of your project requirements and provides support throughout the entire process—from hydraulic cylinder design and drawing confirmation to precision machining, assembly testing, and delivery. Each project is tailored to the actual load, installation space, operating pressure, motion requirements, and operating environment, ensuring that the custom hydraulic cylinder is perfectly matched to your equipment.
Submit Requirements
Provide hydraulic cylinder drawings, photos of samples, or key parameters, including cylinder bore, rod diameter, stroke, operating pressure, mounting method, and purchase quantity.
Engineering Design
GY Hydraulic determines the hydraulic cylinder’s structure, materials, seals, cushioning, and mounting configuration based on equipment load, installation space, and operating environment.
Production and Testing
Precision machining, welding, and assembly are completed in accordance with the approved drawings, followed by dimensional inspection, pressure testing, leak testing, and functional testing.
Packaging and Delivery
After passing inspection, the products undergo surface protection and packaging, and are delivered according to order specifications. Installation, usage, and maintenance support are also provided.
Lifting Force and Hoist Geometry
When the truck bed first begins to rise, the hydraulic cylinder must overcome the greatest lifting resistance. If the installation angle or pivot point position is improper, difficulties in lifting, excessive system pressure, or unstable lifting may occur even if the cylinder has a high thrust capacity.
GY Hydraulic will select the appropriate Dump Truck Hydraulic Cylinder based on the following parameters:
- Body weight and maximum load
- Body length and cargo center of gravity
- System operating pressure
- Cylinder mounting position and angle
- Front and rear pivot point dimensions
- Target unloading angle
- Front and rear pivot point dimensions
- Front and rear pivot point dimensions
Dump Truck Hydraulic Cylinder Solutions by Vehicle Type
Different types of dump trucks vary significantly in terms of payload capacity, body length, lifting angle, installation space, and operating frequency. GY Hydraulic can customize dump truck hydraulic cylinders tailored to the vehicle’s structure and hydraulic system parameters.
Light- and Medium-Duty Dump Trucks
Suitable for urban transportation, construction material delivery, landscaping projects, and general road transport.
These vehicles have limited installation space and place high demands on cylinder retracted length, curb weight, and operational efficiency. GY Hydraulic can customize cylinder bore, stroke, mounting center distance, and port orientation based on body dimensions, rated load, and lifting angle to minimize chassis interference and prevent insufficient lifting capacity.

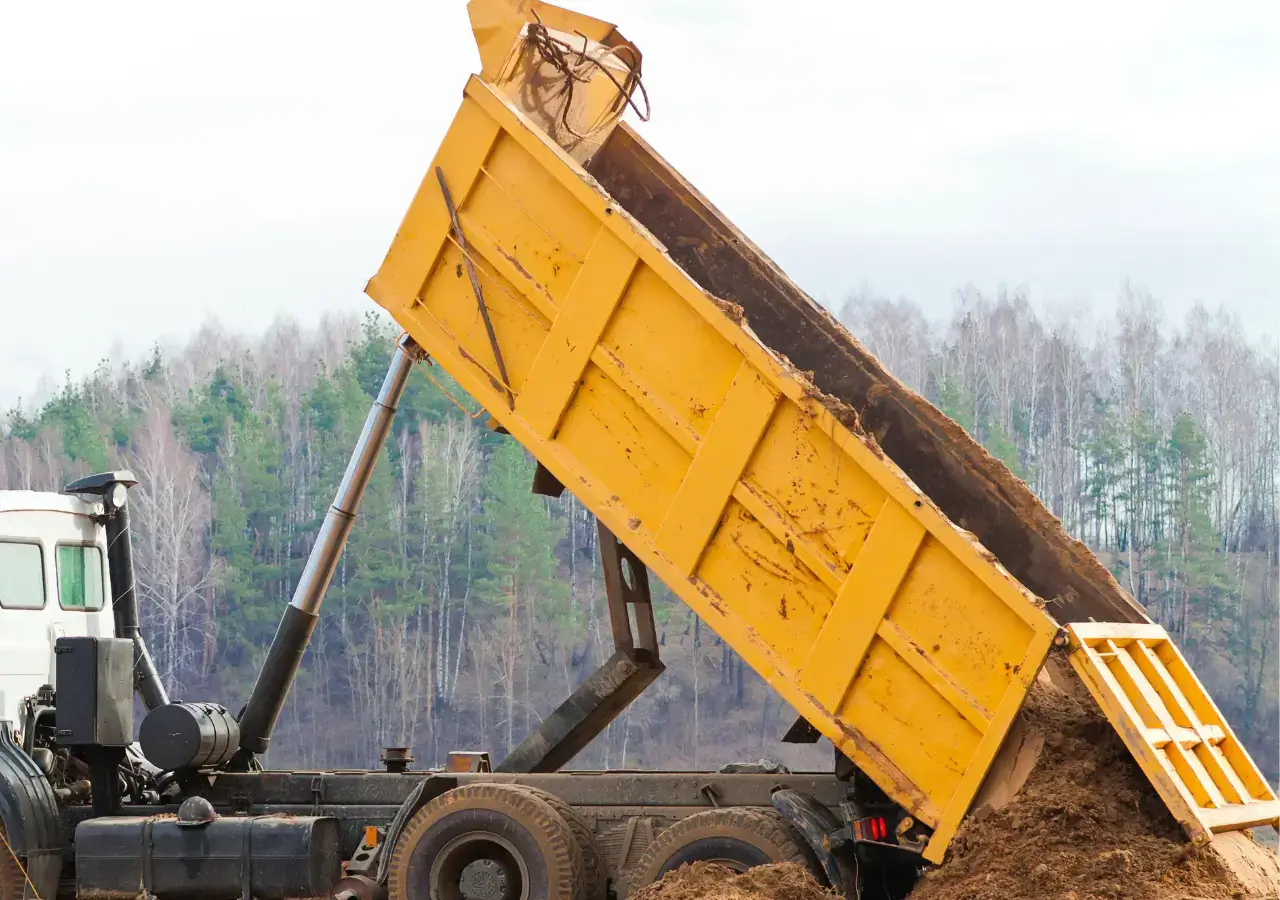

Heavy-Duty Construction Dump Trucks
Suitable for construction sites, earthmoving, sand and gravel transport, and large-scale infrastructure projects.
These vehicles must withstand heavy lifting loads, frequent cycling, and material impact. When selecting hydraulic cylinders, key considerations include initial lifting force, structural strength, piston rod stability, and seal durability.

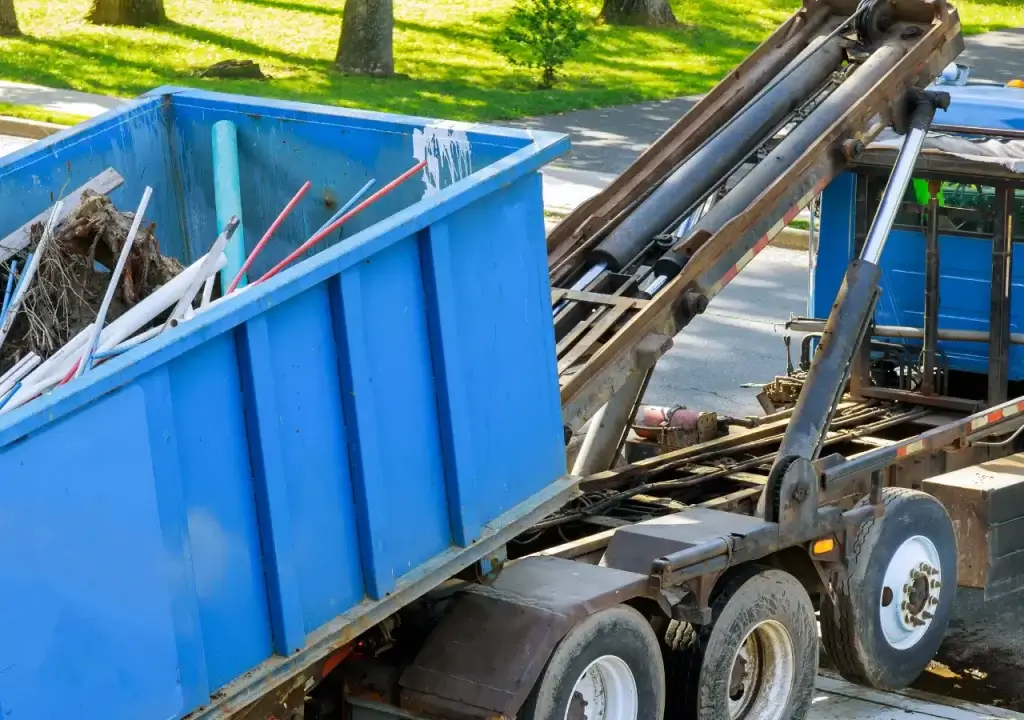

Mining and Off-Road Dump Trucks
Suitable for mines, quarries, and other off-road heavy-duty transport environments.
Mining vehicles face complex operating conditions such as high loads, severe vibrations, dust, mud, and continuous operation. Hydraulic cylinders must possess higher structural reliability, impact resistance, and external protection capabilities. GY Hydraulic has the design and manufacturing capabilities to support such projects.
Dump Semi-Trailers and Dump Trailers
Suitable for transporting sand, gravel, grain, construction materials, and bulk cargo.
These vehicles feature long cargo beds, placing high demands on cylinder effective stroke, retracted dimensions, and overall vehicle stability. GY Hydraulic provides customized solutions based on trailer chassis space, cargo bed pivot points, target unloading angles, and hydraulic power unit parameters.
Agricultural and Special-Purpose Dump Vehicles
Suitable for agricultural trailers, garbage trucks, material transfer vehicles, and other special-purpose vehicles.

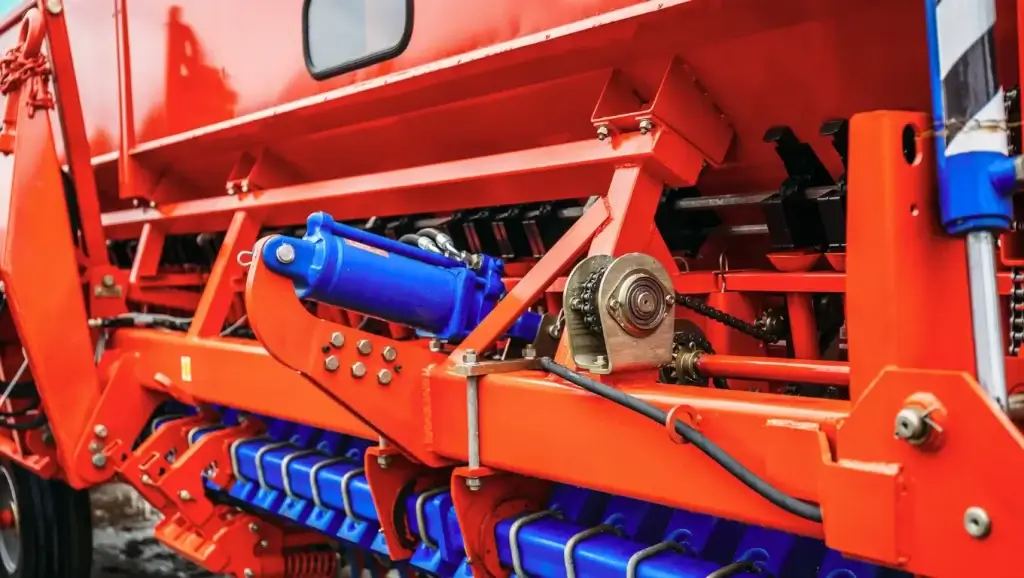

These projects involve non-standard installation spaces and specific motion requirements. In addition to the main lift cylinder, tailgate opening/closing cylinders, locking cylinders, or short-stroke auxiliary cylinders may also be required. GY Hydraulic supports adjustments to installation methods, port locations, sealing configurations, and surface protection based on drawings.
Get An Instant Quote Now
Quality and Performance Testing
The hydraulic cylinders of dump trucks directly affect the stability of the body lift and the safety of unloading. GY Hydraulic conducts quality and performance inspections on dump truck hydraulic cylinders in accordance with approved drawings and project technical requirements.
Key test items include:
- Pressure Testing: Inspecting the cylinder’s pressure-bearing capacity and the condition of connection points;
- Leak Testing: Verifying the sealing performance of the piston rod, cylinder head, cylinder base, and port locations;
- Extension and Retraction Testing: Checking whether the cylinder moves smoothly and whether there is any crawling, jerking, or sticking;
- Buffering Testing: Verifying that cylinders equipped with buffers operate smoothly at the end of their stroke;
- Dimensional inspection: Verify stroke length, mounting center distance, connection structure, and port specifications.
GY Hydraulic is equipped with hydraulic cylinder test benches and hydraulic system testing equipment, and is certified under the ISO 9001 Quality Management System, providing quality support for both prototype development and mass production.
1. How to Select the Right Dump Truck Hydraulic Cylinder?
When selecting a hydraulic cylinder for a dump truck, it is not enough to consider only the vehicle’s payload capacity or the cylinder’s tonnage; you must also comprehensively evaluate the following factors:
- The body’s curb weight and maximum payload;
- The body length and the cargo’s center of gravity;
- Whether the lifting mechanism is front-mounted, mid-mounted, or scissor-type;
- The system’s operating pressure;
- Target unloading angle;
- Cylinder mounting position and available space;
- Retracted length and effective stroke.
Based on the vehicle’s blueprints and lifting mechanism, GY Hydraulic can assist customers in selecting the appropriate cylinder bore, stroke, mounting dimensions, and output thrust.
2. Does greater hydraulic cylinder thrust mean the vehicle can lift heavier loads?
Not necessarily.
Hydraulic cylinder thrust is related to the cylinder bore and system pressure, but the actual lifting capacity of the cargo bed is also affected by the following factors:
- The installation angle of the hydraulic cylinder;
- The position of the rear hinge point of the cargo bed;
- The center of gravity of the cargo;
- The lever arm of the lifting mechanism;
- The initial lifting position;
- Whether the load is distributed evenly on both sides of the cargo bed.
Even if two dump trucks have the same payload capacity, the required cylinder thrust may differ if the body length or mounting geometry differs.
3. How do you determine the stroke of a dump truck’s hydraulic cylinder?
The stroke should be determined based on the change in the center-to-center distance of the cylinder’s mounting points when the body is fully lowered and fully raised.
4. Can the hydraulic cylinders on a dump truck be operated at pressures exceeding their rated pressure?
No.
The actual operating pressure of a hydraulic cylinder must not exceed its rated pressure. Exceeding the rated pressure may increase the risk of leaks, seal damage, and structural failure.
5. Can replacement parts be custom-made based on an old hydraulic cylinder?
Yes. Please provide drawings, nameplates, photos, or physical samples of the old hydraulic cylinder, and confirm the following:
- Cylinder bore and rod diameter;
- Effective stroke;
- Center-to-center distance when fully retracted;
- Mounting configurations at both ends;
- Pin diameter and lug width;
- Port threads, positions, and orientations;
- Operating pressure of the original cylinder;
- Any leakage, rod bending, or impact issues present in the original product.
Prior to final production, GY Hydraulic will verify the drawings based on the confirmed parameters to minimize installation mismatches and on-site rework.
View More Videos about GY Hydraulic
Gain an in-depth understanding of GY Hydraulic’s production processes, manufacturing equipment, quality control, and customization capabilities. See firsthand how we provide reliable hydraulic solutions for a wide range of industrial projects.
Hydraulic Cylinder Solutions for Global Customers
Whether it’s a standard hydraulic cylinder or a complex OEM project, we can provide professional solutions based on the drawings, equipment requirements, and application environment you provide.
