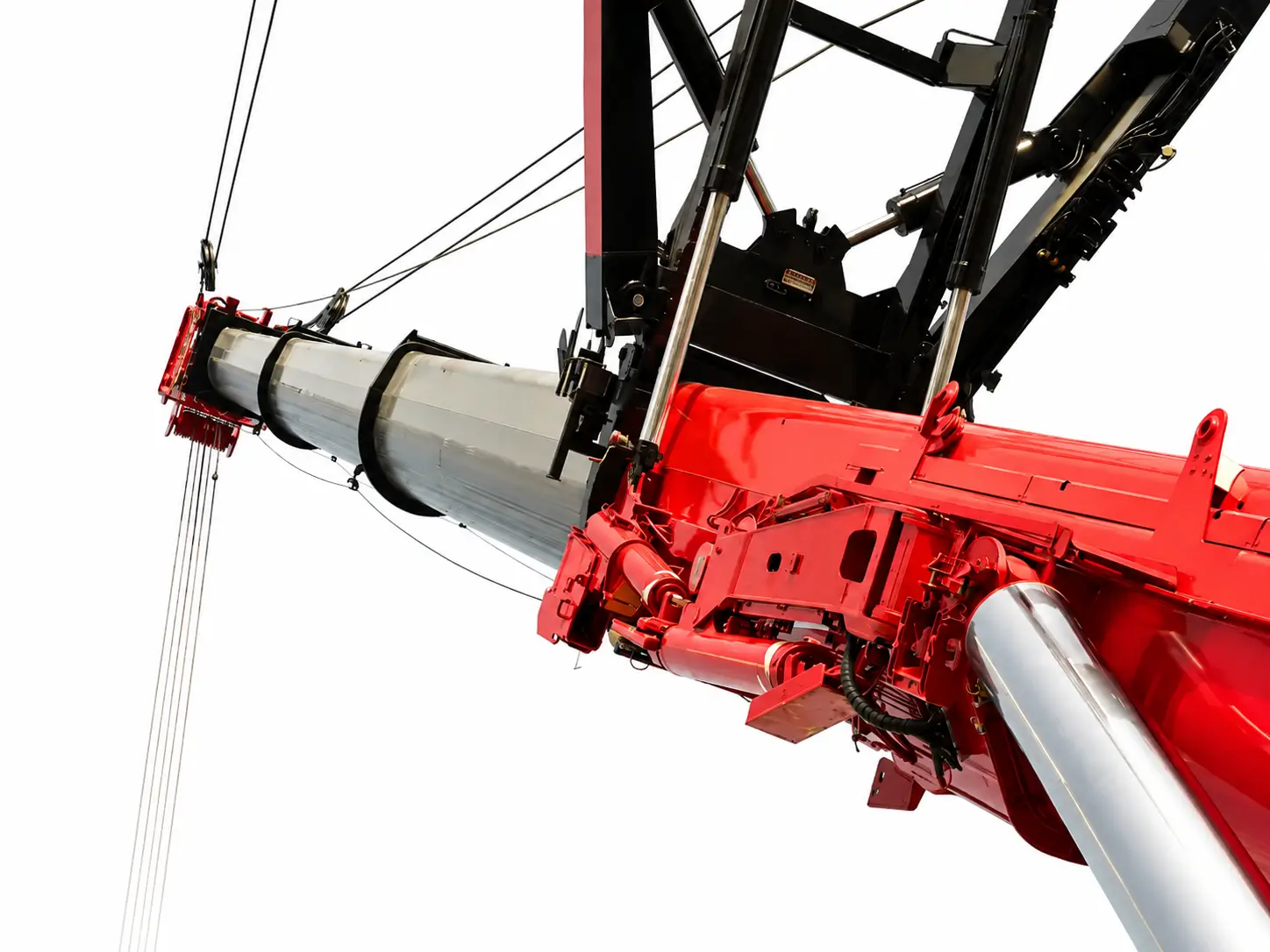

High Reliability Crane Hydraulic Cylinder Solutions
Providing crane manufacturers, construction machinery enterprises, and equipment maintenance providers with high-strength crane hydraulic cylinders, specifically engineered for heavy-duty lifting and demanding operating conditions to ensure stable equipment performance and long-term reliability.
Why Choose GY Hydraulic
Leveraging its professional engineering capabilities, GY Hydraulic provides reliable welded hydraulic cylinders for OEM and custom projects. From prototype development to mass production, we help you achieve consistent product performance, reliable supply assurance, and more efficient project delivery.
Our Crane Hydraulic Cylinder Types
Different types of crane hydraulic cylinders perform distinct functions within crane systems, such as boom lifting, telescoping control, or equipment stabilization. To meet the demands of long-term high-load operation, frequent start-stop cycles, and complex working conditions in cranes, GY Hydraulics offers a variety of structurally engineered hydraulic cylinder solutions. These solutions help equipment manufacturers and engineering companies achieve stable and safe lifting operations.
Specifications for Crane Hydraulic Cylinder
GY Hydraulic manufactures custom crane hydraulic cylinders for boom lifting, telescoping, luffing, outrigger and steering systems. Bore size, stroke,
mounting structure and pressure rating can be engineered according to your crane model, load requirements and installation dimensions.
| Parameter | Typical Specification | Available Customization |
|---|---|---|
| Cylinder Type | Double-acting, single-acting or telescopic hydraulic cylinder | Designed for crane boom lifting, luffing, extension, outrigger, steering and counterweight systems |
| Bore Diameter | 50–500 mm | Selected according to system pressure, required lifting force and available installation space |
| Piston Rod Diameter | 30–360 mm | Customized according to compression load, buckling resistance, stroke length and side-load conditions |
| Stroke Length | 100–12,000 mm | Short-stroke, long-stroke and multi-stage telescopic structures are available |
| Rated Working Pressure | 16–35 MPa / 160–350 bar | Pressure rating can be engineered according to the crane hydraulic circuit and operating load |
| Proof Test Pressure | Normally 1.5 times the rated working pressure | Testing requirements can follow customer drawings, inspection plans or project standards |
| Cylinder Tube Material | High-strength carbon steel or alloy steel | Material grade and wall thickness are selected according to pressure, fatigue life and environmental conditions |
| Piston Rod Material | High-strength steel with hard chrome-plated surface | Induction-hardened rod, nickel-chrome coating and other corrosion-resistant treatments are available |
| Rod Surface Treatment | Hard chrome plating or customized protective coating | Coating thickness and surface hardness can be selected for abrasive, corrosive or high-cycle applications |
| Seal System | Polyurethane, NBR, PTFE or composite sealing systems | Seal materials are selected according to pressure, speed, temperature, hydraulic oil and contamination level |
| Operating Temperature | Typically -30°C to +80°C | Low-temperature and high-temperature sealing packages are available |
| Mounting Types | Clevis, eye, trunnion, flange, pin or spherical bearing | Mounting structures and installation dimensions can be manufactured according to drawings or original samples |
| Hydraulic Ports | BSP, NPT, metric, SAE or flange connection | Port size, position, orientation and thread standard can be customized |
| Position Sensing | Optional | Linear displacement sensors, proximity switches or integrated position-feedback systems can be added |
| Cushioning | Fixed cushioning, adjustable cushioning or no cushioning | End-of-stroke cushioning can reduce impact, vibration and mechanical shock |
| Surface Treatment | Industrial paint, powder coating or customer-specified finish | Paint color, coating thickness and corrosion-protection level can be specified |
| Inspection and Testing | Dimensional, pressure, leakage and functional testing | Fatigue, load-holding, coating and material inspections can also be arranged |
| Typical Applications | Mobile cranes, truck cranes, crawler cranes, tower cranes and marine cranes | OEM replacement cylinders and newly developed crane hydraulic systems are supported |
Custom Welded Hydraulic Cylinder Process
GY Hydraulic begins with an analysis of your project requirements and provides support throughout the entire process—from hydraulic cylinder design and drawing confirmation to precision machining, assembly testing, and delivery. Each project is tailored to the actual load, installation space, operating pressure, motion requirements, and operating environment, ensuring that the custom hydraulic cylinder is perfectly matched to your equipment.
Submit Requirements
Provide hydraulic cylinder drawings, photos of samples, or key parameters, including cylinder bore, rod diameter, stroke, operating pressure, mounting method, and purchase quantity.
Engineering Design
GY Hydraulic determines the hydraulic cylinder’s structure, materials, seals, cushioning, and mounting configuration based on equipment load, installation space, and operating environment.
Production and Testing
Precision machining, welding, and assembly are completed in accordance with the approved drawings, followed by dimensional inspection, pressure testing, leak testing, and functional testing.
Packaging and Delivery
After passing inspection, the products undergo surface protection and packaging, and are delivered according to order specifications. Installation, usage, and maintenance support are also provided.
OEM Custom Crane Hydraulic Cylinders
Within the construction machinery industry, cranes of different models exhibit significant variations in structural dimensions, load-bearing capacity, and hydraulic system design. Consequently, many equipment manufacturers require customized crane hydraulic cylinders to achieve perfect compatibility with their equipment structures. Addressing this need, GY Hydraulics provides professional OEM customization services for crane manufacturers, construction equipment enterprises, and hydraulic system integrators, helping clients obtain hydraulic cylinder solutions better suited to their equipment applications.
By integrating engineering expertise with robust manufacturing capabilities, GY Hydraulics develops crane hydraulic cylinders tailored to actual operating conditions based on customer equipment specifications or technical drawings.
Crane Hydraulic Cylinder Application Solutions
In the construction machinery and heavy lifting industry, crane hydraulic cylinders are critical components for achieving boom elevation, boom extension/retraction, and equipment stability control. Different types of lifting equipment vary in structural design, load capacity, and operating environments, necessitating tailored hydraulic cylinder solutions.

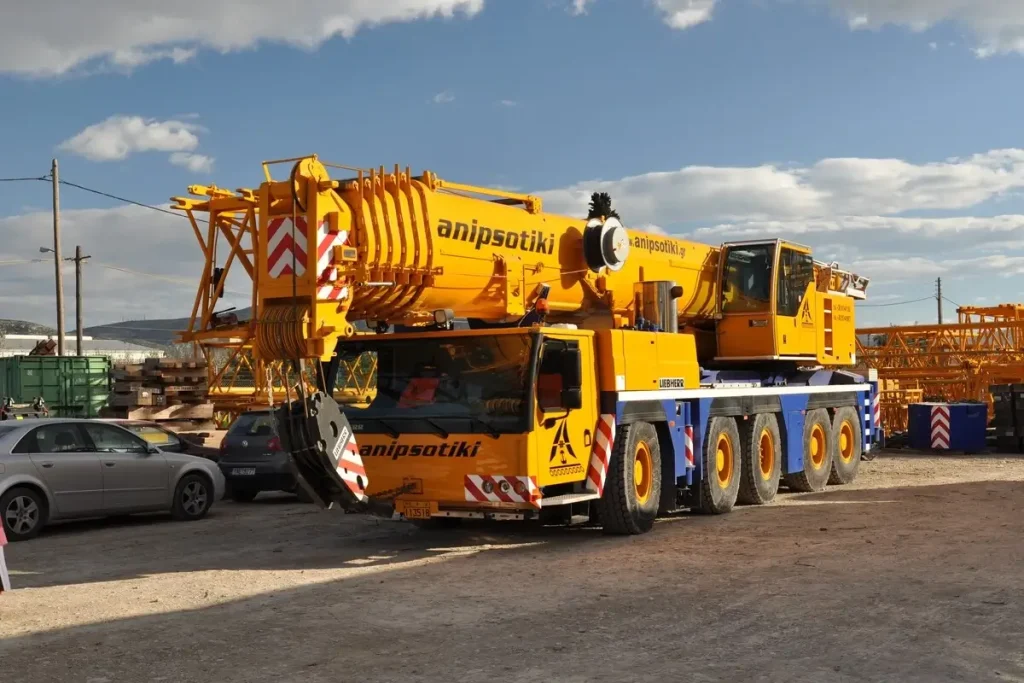

Truck Crane
Truck cranes are widely used in construction, equipment installation, and engineering maintenance scenarios, demanding high load-bearing capacity and stability from crane hydraulic cylinders.
GY Hydraulics provides hydraulic cylinder solutions for truck crane boom lifting and outrigger stabilization systems. Through high-strength structural design and stable sealing systems, these solutions ensure reliable performance even in frequent operation environments.
Tower Crane
In high-rise construction, tower cranes require precise boom angle control and stable load-bearing capacity.
GY Hydraulics provides crane hydraulic cylinders for tower crane equipment, enabling smooth boom slewing and precise load control to enhance construction efficiency and safety.

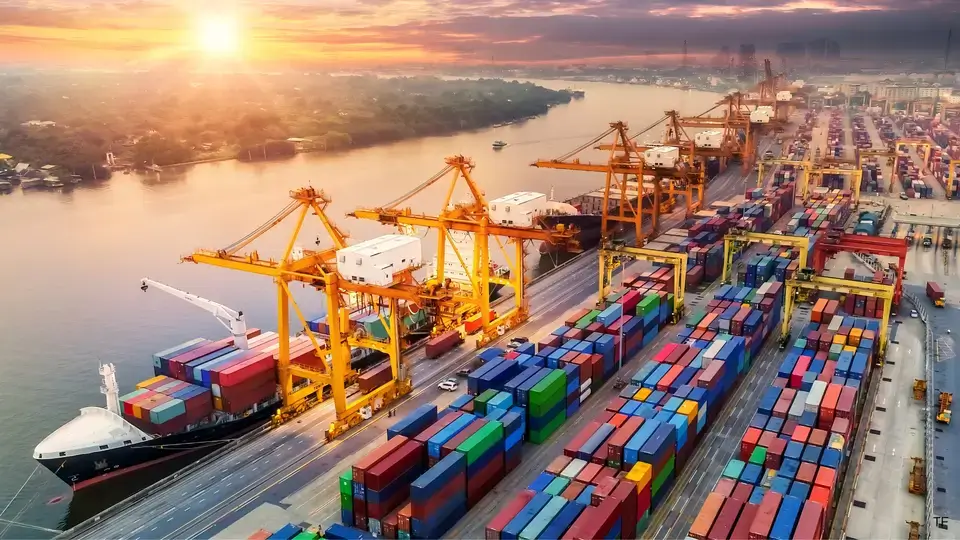

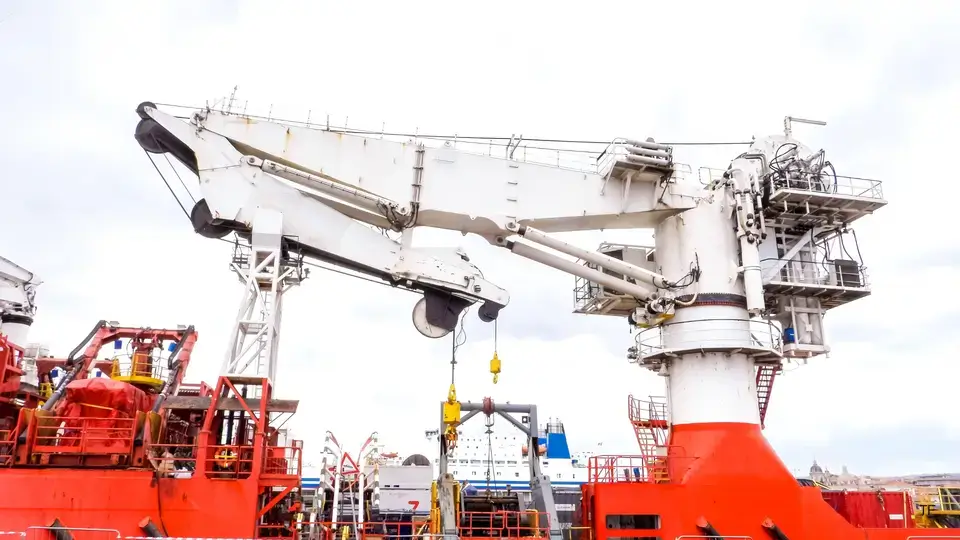

Harbor & Industrial Cranes
Port cranes and industrial hoisting systems require long-term operation in humid, dusty, or corrosive environments.
GY Hydraulics’ crane hydraulic cylinders utilize wear-resistant materials and reliable sealing structures, ensuring stable operation in complex conditions while reducing maintenance frequency and extending equipment lifespan.
Get An Instant Quote Now
Crane Hydraulic Cylinder Manufacturing Capability
In the construction machinery industry, the reliability of crane hydraulic cylinders depends not only on design but also on stable manufacturing processes and rigorous quality control. For crane manufacturers and equipment engineering companies, consistent manufacturing capabilities translate to more dependable product performance, more uniform product quality, and more predictable delivery schedules.
GY Hydraulics delivers high-quality crane hydraulic cylinder manufacturing solutions through advanced production equipment and standardized manufacturing processes.
- Precision Machining Capabilities
- High-Standard Welding and Structural Fabrication

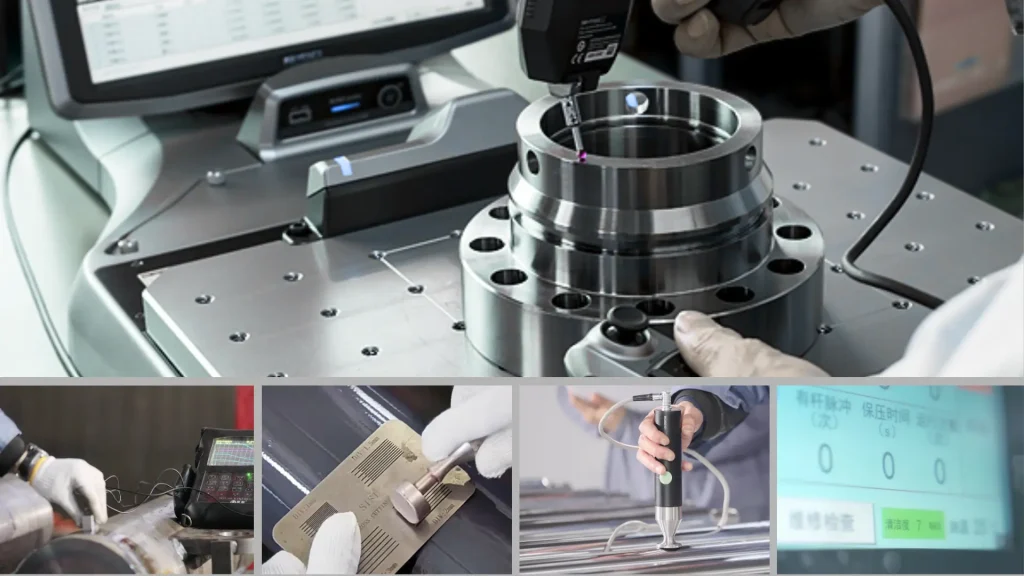

- Standardized Assembly and Multiple Inspections
- Standardized Production Processes and Quality Management System
1. What Role Does The Crane Hydraulic Cylinder Play In A Crane?
The crane hydraulic cylinder converts hydraulic pressure into linear motion, enabling functions such as boom lifting and lowering, boom extension and retraction, and stable equipment support. The performance of the hydraulic cylinder directly impacts the crane’s load capacity, operational stability, and work safety.
2. What Are The Common Faults Of Crane Hydraulic Cylinders?
During prolonged operation, crane hydraulic cylinders may experience the following issues:
– Seal wear leading to oil leakage
– Surface damage to the piston rod
– Internal pressure loss
– Component wear caused by sustained heavy loads
Regular maintenance and inspection of the hydraulic system can effectively minimize these problems.
3. How To Select The Right Crane Hydraulic Cylinder?
Selecting the appropriate crane hydraulic cylinder requires consideration of the following key factors:
- Bore Diameter: Determines the output force
- Stroke Length: Determines the travel distance
- Working Pressure: Matches the hydraulic system
- Mounting Type: Ensures compatibility with equipment structure
For crane manufacturers, it is recommended to perform engineering selection based on equipment design parameters, with custom designs available when necessary.
4. What Is The Typical Service Life Of A Crane Hydraulic Cylinder?
The service life of a hydraulic cylinder depends on multiple factors, including material quality, seal system design, operating pressure, and environmental conditions. High-quality crane hydraulic cylinders can operate stably over extended periods under normal conditions and with proper maintenance, maintaining excellent sealing performance and load-bearing capacity.
