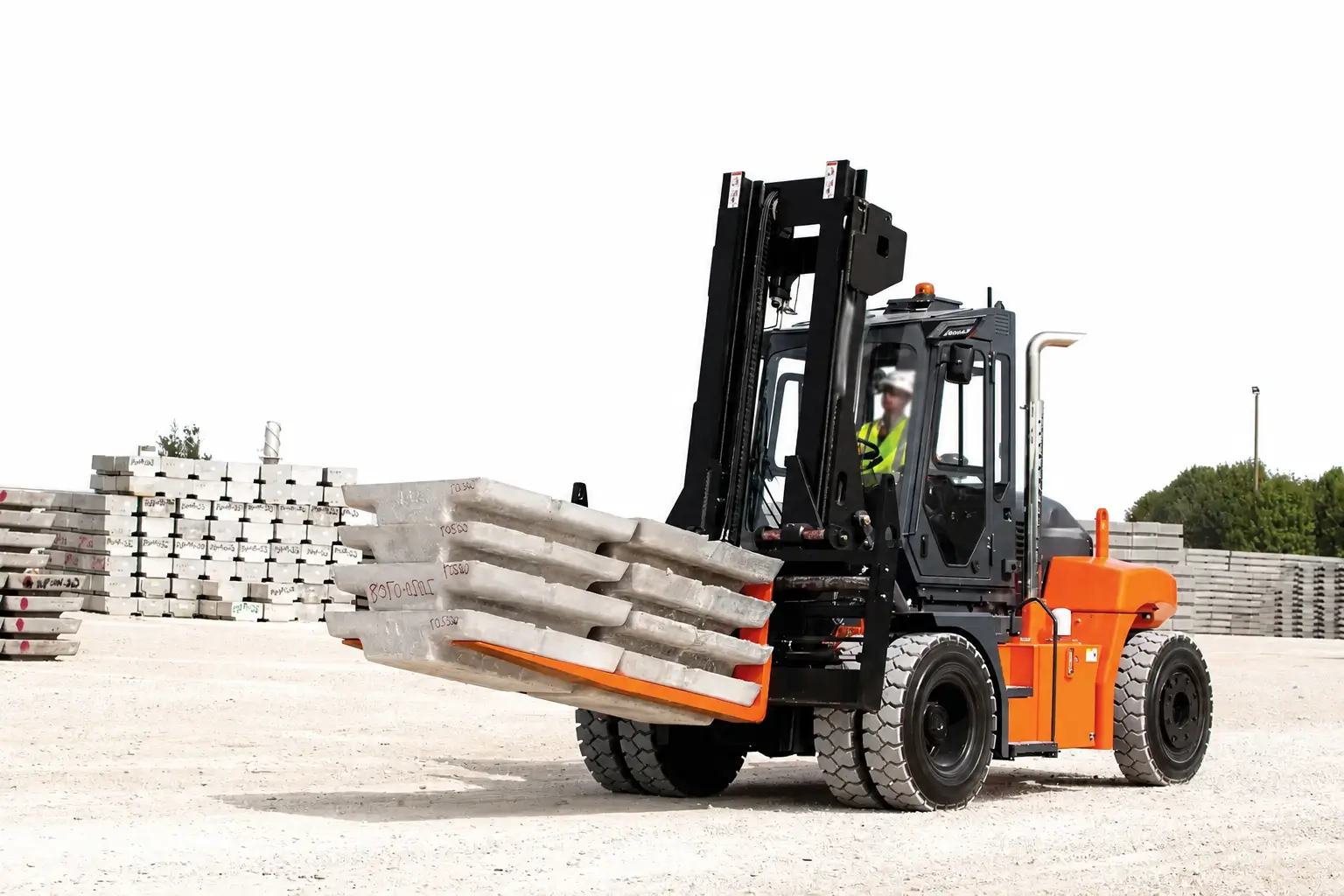

Forklift Hydraulic Cylinders For Sale
Forklift hydraulic cylinders serve as critical actuators within the forklift hydraulic system, primarily controlling mast elevation, mast tilt, and steering system hydraulic drive. Stable cylinder performance directly impacts the forklift’s load capacity, operational safety, and overall equipment efficiency.
Why Choose GY Hydraulic
Leveraging its professional engineering capabilities, GY Hydraulic provides reliable welded hydraulic cylinders for OEM and custom projects. From prototype development to mass production, we help you achieve consistent product performance, reliable supply assurance, and more efficient project delivery.
Types of Forklift Hydraulic Cylinders
To meet the diverse requirements of forklift structures and application scenarios, TF Hydraulics offers a wide range of forklift hydraulic cylinders for sale. Different cylinder types perform distinct functions within forklift systems, resulting in variations in structural design, stroke length, and load-bearing capacity.
Custom Specifications for Forklift Hydraulic Cylinders
Submit your forklift model, original hydraulic cylinder drawings, operating pressure, and purchase quantity to GY Hydraulic to receive a customized solution for forklift hydraulic cylinders.
| Custom Specification | GY Hydraulic Customization Options | Project Information Required |
|---|---|---|
| Cylinder Application | Hydraulic cylinders designed for forklift lifting, tilting, steering and other operating functions. | Provide the cylinder installation position, required movement and original cylinder drawing. |
| Cylinder Type | Standard, engineering-series or special-purpose hydraulic cylinders designed according to forklift operating requirements. | Confirm whether the cylinder is single-acting, double-acting or uses another return method. |
| Cylinder Bore | Overall manufacturing capability from Ø25 to Ø1000 mm . | Determined by load capacity, working pressure and available installation space. |
| Piston Rod Diameter | Customized according to load, stroke, operating frequency and stability requirements. | Bending resistance, impact load and possible side load must be evaluated. |
| Effective Stroke | Customized according to the forklift movement range and mounting dimensions. Overall manufacturing capability supports strokes up to 16 m. | Confirm the retracted length, extended length and maximum permitted stroke. |
| Working Pressure | Designed to match the forklift hydraulic system and required output force, with overall system pressure capability up to 70 MPa. | Provide normal working pressure, maximum pressure and relief-valve setting. |
| Mounting Dimensions | Customized mounting center distance, pin holes, clevises, flanges and connection dimensions. | Confirm available space, load direction, mounting position and pin dimensions. |
| Rod-End and Cylinder-Cap Connection | Designed according to customer drawings, original cylinder structures or equipment mounting requirements. | Provide connection type, hole diameter, mounting width and pin dimensions. |
| Hydraulic Ports | Customized port thread, size, position and orientation to match the forklift hydraulic circuit. | Provide the thread standard, hose direction and required flow rate. |
| Sealing System | Seal configuration selected according to pressure, hydraulic medium, operating temperature and leakage requirements. | Confirm hydraulic fluid type, temperature range and working environment. |
| Guiding System | Guide structure matched to the piston rod diameter, stroke and load conditions. | Designed to reduce side loading, uneven wear and unstable cylinder movement. |
| Cushioning | Optional cushioning configurations for controlling end-of-stroke speed and impact. | Provide operating speed, moving load and end-of-stroke impact conditions. |
| Piston Rod Surface Treatment | Surface treatment selected according to wear resistance, corrosion protection and operating conditions. | Specify exposure to dust, moisture, impact, contamination and frequent operation. |
| Cylinder Coating | Customized protective coating and exterior color for indoor, outdoor, humid or corrosive environments. | Confirm color, corrosion-resistance and appearance requirements. |
| Hydraulic Medium and Temperature | Internal components and seals matched to the specified hydraulic medium and operating temperature. | The hydraulic medium must be compatible with the selected sealing materials. |
| Quality and Performance Testing | Pressure, leakage, movement, stroke and dimensional inspections based on project requirements. | Confirm test pressure, holding time, leakage limits and acceptance standards. |
| OEM Development | Development based on 2D drawings, technical specifications, original cylinder information or physical samples. | Final drawings and technical requirements must be approved before batch production. |
Custom Welded Hydraulic Cylinder Process
GY Hydraulic begins with an analysis of your project requirements and provides support throughout the entire process—from hydraulic cylinder design and drawing confirmation to precision machining, assembly testing, and delivery. Each project is tailored to the actual load, installation space, operating pressure, motion requirements, and operating environment, ensuring that the custom hydraulic cylinder is perfectly matched to your equipment.
Submit Requirements
Provide hydraulic cylinder drawings, photos of samples, or key parameters, including cylinder bore, rod diameter, stroke, operating pressure, mounting method, and purchase quantity.
Engineering Design
GY Hydraulic determines the hydraulic cylinder’s structure, materials, seals, cushioning, and mounting configuration based on equipment load, installation space, and operating environment.
Production and Testing
Precision machining, welding, and assembly are completed in accordance with the approved drawings, followed by dimensional inspection, pressure testing, leak testing, and functional testing.
Packaging and Delivery
After passing inspection, the products undergo surface protection and packaging, and are delivered according to order specifications. Installation, usage, and maintenance support are also provided.

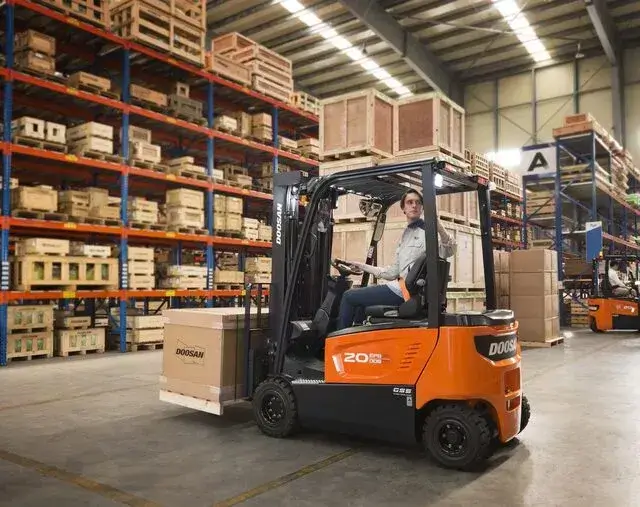

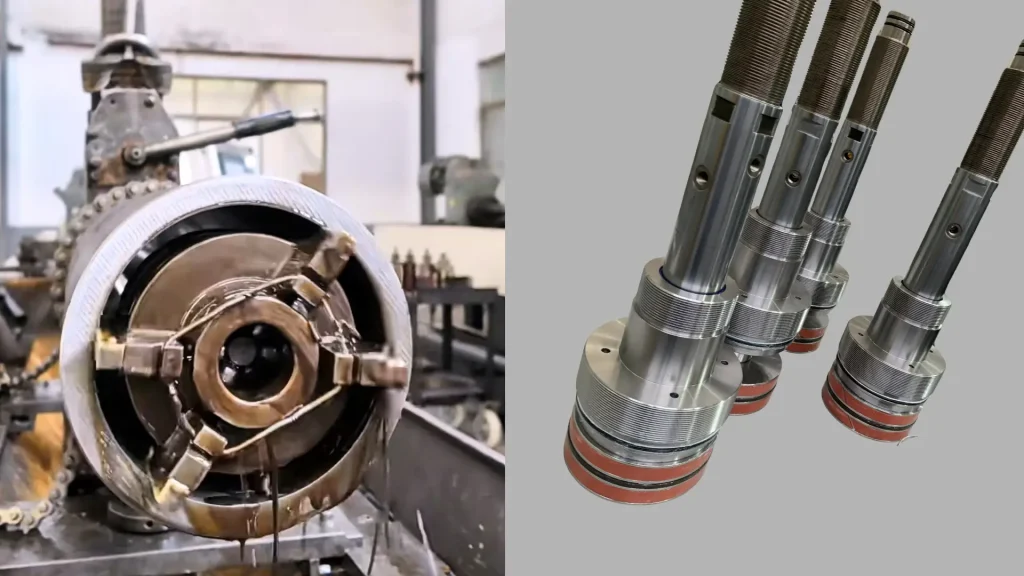

OEM Custom Forklift Hydraulic Cylinders
Different forklift models vary in cylinder dimensions, mounting configurations, and operating parameters, necessitating customized hydraulic cylinder solutions for many equipment manufacturers and parts distributors. Addressing this demand, TF Hydraulics offers professional OEM Custom Hydraulic Cylinders services, providing a wide range of Forklift Hydraulic Cylinders for Sale to global customers.
We support custom manufacturing based on technical drawings, samples, or forklift model specifications. Key parameters such as:
- Bore
- Stroke
- Rod Diameter
- Mounting Configuration
Forklift Hydraulic Cylinder Project Cases
In the forklift equipment industry, the reliability of hydraulic cylinders directly impacts equipment stability, operational efficiency, and maintenance costs. Addressing the practical needs of forklift parts distributors, equipment manufacturers, and maintenance service providers, TF Hydraulics has supplied Forklift Hydraulic Cylinders for Sale to numerous material handling projects. Through mature structural design, stable sealing systems, and rigorous quality control, our products maintain long-term stable operation in high-load and high-frequency working environments.
Warehouse Forklift Project
One of our major logistics equipment clients utilizes 3-ton electric forklifts for high-frequency pallet handling operations within an automated warehouse center. The equipment operates 10–12 hours daily, requiring over 600 lifting cycles.
For this project, TF Hydraulics supplied custom Lift Cylinders with key specifications including:
- Bore Diameter: 80 mm
- Rod Diameter: 45 mm
- Stroke: 1200 mm
- Working Pressure: 21 MPa

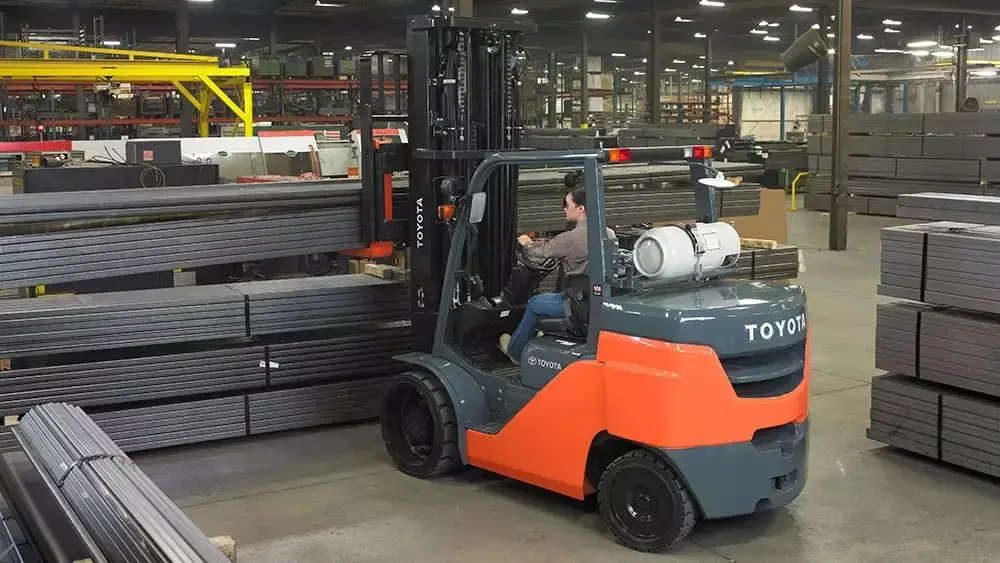

Industrial Manufacturing Forklift Project
A manufacturing company uses 5-ton diesel forklifts in its production workshop to transport steel and heavy components. This application involves high loads, frequent vibrations, and prolonged continuous operation.
TF Hydraulics provided a tilt cylinder solution to control mast tilt forward and backward, thereby stabilizing the load’s center of gravity and enhancing loading/unloading efficiency.
Project Key Parameters:
- Bore Diameter: 70 mm
- Rod Diameter: 40 mm
- Stroke: 320 mm
- Working Pressure: 18 MPa
Industrial Manufacturing Forklift Project
A manufacturing company uses 5-ton diesel forklifts in its production workshop to transport steel and heavy components. This application involves high loads, frequent vibrations, and prolonged continuous operation.
TF Hydraulics provided a tilt cylinder solution to control mast tilt forward and backward, thereby stabilizing the load’s center of gravity and enhancing loading/unloading efficiency.
Project Key Parameters:
- Bore Diameter: 70 mm
- Rod Diameter: 40 mm
- Stroke: 320 mm
- Working Pressure: 18 MPa
Get An Instant Quote Now

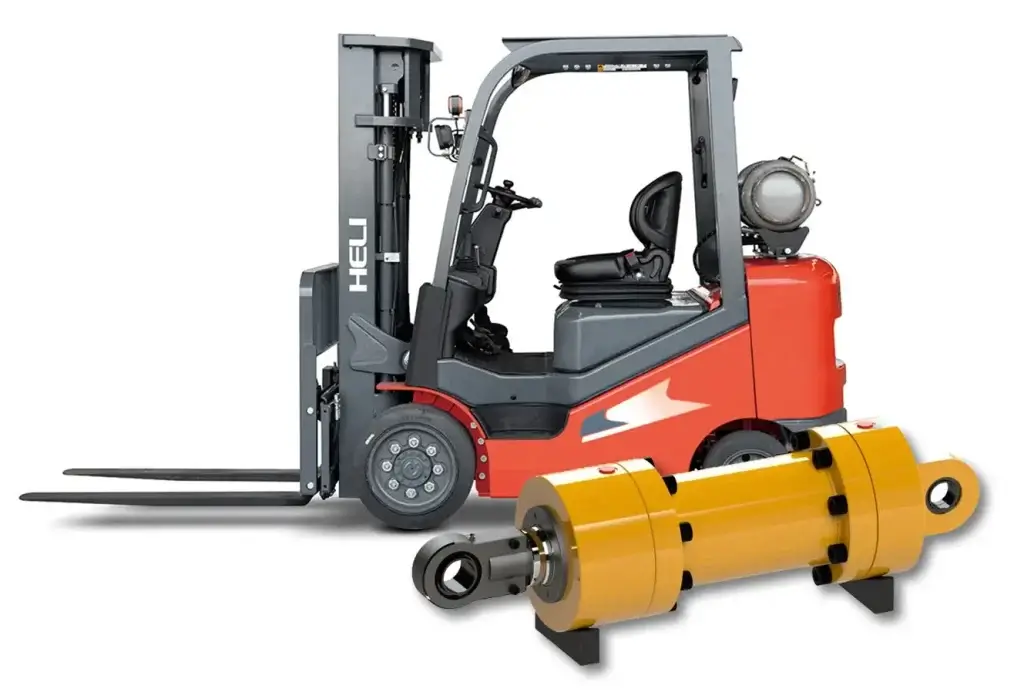

Manufacturing Capability for Forklift Hydraulic Cylinders
Stable manufacturing capabilities are a key factor in selecting suppliers. TF Hydraulics specializes in industrial hydraulic component production, having established a mature production system for the machining, assembly, and testing of forklift hydraulic cylinders. We consistently provide reliable Forklift Hydraulic Cylinders for Sale to customers worldwide.
During manufacturing, we employ precision machining techniques and high-grade materials. Cylinder barrels undergo precision honing to enhance inner wall smoothness and sealing performance. Piston rods are crafted from high-strength steel with hard chrome plating, boosting wear resistance and corrosion protection. This ensures stable cylinder performance under high loads and frequent operation.
Additionally, TF Hydraulics supports OEM custom manufacturing based on technical drawings or samples, enabling precise compatibility with various forklift models.
1. In Which Industries Are Forklift Hydraulic Cylinders Primarily Used?
Forklift hydraulic cylinders are widely employed in material handling sectors including warehousing and logistics, industrial manufacturing, construction engineering, and port equipment. In these applications, the cylinders drive the forklift mast and steering system, serving as critical components for stable operation.
2. How To Select The Right Forklift Hydraulic Cylinder?
Several key factors must be considered when selecting a forklift hydraulic cylinder, including bore diameter, stroke length, rod diameter, working pressure, and mounting method. These parameters must align with the forklift’s structural design and load capacity to ensure stable and reliable cylinder performance during actual operation.
3. What Is The Operating Pressure Of Forklift Hydraulic Cylinders?
Most forklift hydraulic systems operate at pressures ranging from 16 MPa to 25 MPa. The specific pressure depends on the forklift’s load capacity and hydraulic system design. High-quality cylinder construction and stable sealing systems ensure long-term reliable operation within this pressure range.
4. Why Do Hydraulic Cylinders In Forklifts Experience Oil Leakage?
Oil leakage is associated with seal wear, damage to the piston rod surface, or excessive internal pressure within the cylinder. Selecting a high-quality sealing system and conducting regular inspections of the cylinder condition can effectively reduce the risk of leakage and extend equipment service life.
5. Can Forklift Hydraulic Cylinders Be Custom-Manufactured?
Yes. TF Hydraulics supports OEM custom production based on technical drawings, samples, or equipment specifications to accommodate different forklift models and application requirements. Key parameters such as bore diameter, stroke length, and mounting configurations can be adjusted according to equipment needs.
View More Videos about GY Hydraulic
Gain an in-depth understanding of GY Hydraulic’s production processes, manufacturing equipment, quality control, and customization capabilities. See firsthand how we provide reliable hydraulic solutions for a wide range of industrial projects.
Hydraulic Cylinder Solutions for Global Customers
Whether it’s a standard hydraulic cylinder or a complex OEM project, we can provide professional solutions based on the drawings, equipment requirements, and application environment you provide.
